配件料號：

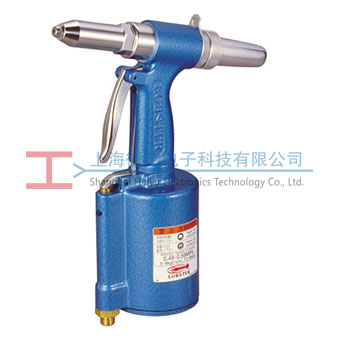

| Model No. AR 011H | |
| Code | Parts Name |
| 10213 | Nosepiece 'M' 2.4 (3/32) |
| 10214 | Nosepiece 'M' 3.2 (1/8) |
| 10215 | Nosepiece 'M' 4.0 (5/32) |
| 14350 | Nosepiece 'M' 4.8 (3/16) |
| 10226 | Nosepiece 'H' 6.4 (1/4) |
| 10191 | Frame Head 'H' |
| 20528 | Jaw Case Head 'M' |
| 10223 | Jaw Case Head 'H' |
| 10117 | Jaws 'M' |
| 10201 | Jaws 'H' |
| 10209 | Jaw Pusher 'M' |
| 10224 | Jaw Pusher 'H' |
| 10152 | O-Ring S-14 |
| 10198 | Jaw Case |
| 10210 | Jaw Pusher Spring |
| 10148 | Lock Washer A-7/16 |
| 10113 | Jaw Case Lock Nut |
| 10128 | O-Ring P-12 |
| 10129 | B-Ring P-12 |
| 14135 | Frame, loose (AR-011H) |
| 10187 | Frame Unit (with O-/B-Rings) |
| 10195 | Oil Piston |
| 10207 | O-Ring P-24 |
| 10208 | B-Ring P-24 |
| 14139 | Return Spring A+B (set) |
| 10196 | Return Spring "A" (inner) |
| 10197 | Return Spring "B" (outer) |
| 10221 | O-Ring S-28 |
| 10192 | Hanger Clip |
| 10190 | Frame Cap |
| 10072 | Safety Cap "H" (polished) |
| 10194 | Safety Cap Nut |
| 13126 | Trigger (long) |
| 10202 | Trigger Connector Rod |
| 10119 | Trigger Lever |
| 23595 | Spring Pin 3 x 7.2 |
| 10188 | Air Cylinder |
| 29736 | Bumper |
| 10144 | Spring Pin 3 x 22 |
| 10145 | Spring Pin 3 x 18 |
| 14154 | Slotted Pin 4 x 31 |
| 10112 | Frame Lock Nut |
| 10219 | O-Ring P-9 |
| 10205 | Valve Pusher |
| 10206 | Valve Pusher Spring |
| 10222 | Collar for Valve Pusher |
| 10220 | O-Ring S-6 |
| 10125 | Valve |
| 10126 | Valve Spring |
| 10152 | O-Ring S-14 |
| 10127 | Nipple |
| 10212 | O-Ring P-70 |
| 14164 | Air Piston Unit |
| 10211 | O-Ring G-80 |
| 10059 | Air Cylinder Cap |
| 10217 | Spanner 'A' |
| 10218 | Spanner 'B' |
| 10140 | Air Hose Joint 1/4 |
| 10139 | Air Hose Joint Nut 1/4 |
| 10012 | Hydraulic Oil |
