配件料號(hào)：

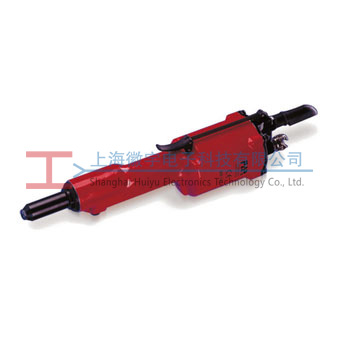

| 型號(hào)： | RAC230 | ||
| Articleno. | Designation | Articleno. | Designation |
| 710843 | Head carrying nozzle | 712322 | Ring nut |
| 712342 | Ring nut | 712321 | Dampener |
| 710554 | Cap | 712320 | Stem |
| 710555 | Washer dowty 400-004-4490 | 722319 | Piston |
| 712341 | Tool body | 712318 | O Ring 2-231 |
| 712340 | Push button | 710837 | Stem screw |
| 71237 | Plug Φ3x14 UMN 1707 | 712317 | 0 Ring 038 |
| 712338 | Connecting rod | 712316 | Spring guide plug |
| 712334 | Connector | 710594 | 0R 2-12 |
| 712339 | Fork | 712315 | Molla |
| 712335 | Plug Φ3x16 UNI 1707 | 710385 | 0R 006 dowty |
| 712283 | Guard | 710377 | Sfera RB-8 |
| 722333 | Bottom | 712314 | 0R 2-107 |
| 712332 | Suction adjustement knob | 712313 | 0R 2-104 |
| 717004 | Nozle for rivet Φ4.8acc.-rame | 712312 | Pistone |
| 71345507 | High-performance clamps | 710003 | 0R 5-052 |
| 710011 | Standard clamps | 710002 | 0R 2-108 |
| 710859 | clamps holding cone | 712416 | Rondella spec.Φ9.4X20X1.5 |
| 710853 | Clamps return springs | 712293 | Tubo di aspirazione |
| 710849 | Clamps opener | 710303 | Vite TCE M5X16 UNI 5931 |
| 712331 | Cone holder | 710173 | Raccordo dado fresato 1/4" |
| 712329 | Reducer | 712343 | Silenziatore 2 SEM 1/4" M |
| 712330 | Piston guide | 712142 | Guarniz. PARBAK 8-121 |
| 710577 | Balsele B 086055 | 712327 | Molla |
| 712328 | Piston | 717001 | Ugello per rivett Φ2.4÷3.4 |
| 711721 | Balsele B 110078 NEO | 717002 | Uaello per rivett Φ4 |
| 712326 | oil-dynamic cylinder | 717003 | Uaello per rivett Φ4.8 Al. |
| 711063 | 0 Ring 2-121(N-552-90) | 717006 | Ugello per rivetto Φ2.4 |
| 716060 | 0 Ring 2-10 | 711357 | Chiave di corredo |
| 712325 | Spring | 710969 | Contenitore olio |
| 712324 | Steam guide | 723283 | Apri moretti per rivetti Φ2.4÷3.4 |
| 710390 | Balsele B 075047 | ||
